10202 GAC-2/foil Balanced installation cable PVC, with foil shield

Foil shielded installation cable using 7 x 0.20 mm tinned wires for IDT. Designed for wiring balanced audio signals in a metal environment. Aluminium foil is melt with the PVC-jacket and will come off automatically when the PVC-jacket is removed. The twisting of the each 7 strands is so tight that once peeling the insulation off, the strands do not come apart and the cable can be installed without additional handling.
Same cable is available as a halogen free non corrosive version FRNC (10206)

New spring 2025 also in white colour on spools each 500m (10204)

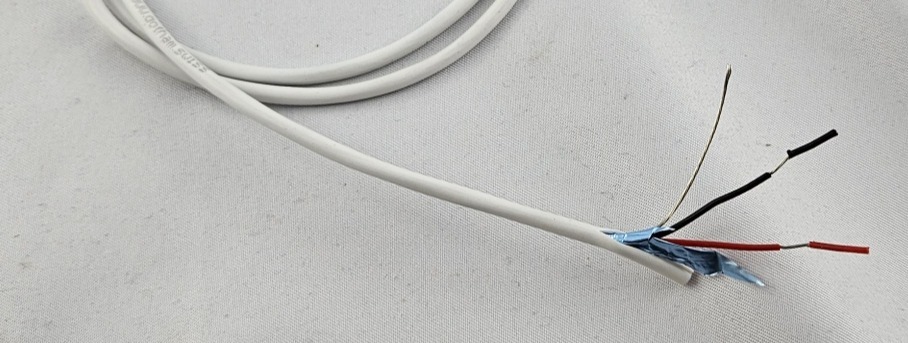

New! Now available in white (PVC) with very discrete printing

Construction:
1 = Jacket: PVC, Ø 3.0mm, black (10202)  white (10204
2 = Shield: Aluminium-Polyester foil
3 = Drain wire: Stranded tinned copper wires 7 x 0.22mm (0.22mm²)
4 = Insulation (cond): PE, Ø 1.1mm, twisted, black and red conductors
5 = Conductor: Stranded tinned copper wires 7 x 0.20mm (0.22mm²) 7x32AWG = (24 AWG)

Technical datas:
Conductor resistance:   < 85 ohm/km
Shielding resistance:   < 65 Ohm/km
Capacitance: cond/cond: < 75 nF/km
  cond/shield: < 141 nF/km
Test voltage: cond/cond: 500 veff
  cond/shield: 1500 veff
Temperature range: flexi-installed: -5° to +50° C
  fix-installed: -30° to +70° C

Ordering Information:

Order No. Type Diameter Colour Spool Size Weight/
Spool		  Shipping Unit
10202 GAC-2/foil 3.0 mm black 300m 4.20 kg 4x300m
10204 GAC-2/foil white 3.0 mm white 500m 7.10 kg 1x500m


Please inquire via contact and avoid entering all datas. You can also simply send us an email to info@gothamaudio.us
No minimum order!
Gotham Cables are available from our Swiss service lab soldered as per your desires.
