10301 GAC-2/1 Professional balanced installation cable with small diameter and double shield

Balanced double shielded audio cable! Very flexible. Professional installation cable with small diameter, PE-insulation for low capacity. Ideal for fixed installations and rack-wirings. The same construction is used as single element on our range of analog multipair cables snakes 140XX .  Same cable is available as FRNC non corrosive version in black 10306

New spring 2025 also on spools each 500m in box (10301-500)

OFC copper at best standards for best performance.

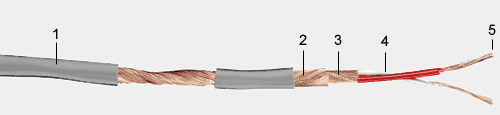

Construction:
1 = Jacket: PVC, Ø 3.3 mm, grey
2 = Shield No. 1: Bare copper wires (0.10 mm) 100% coverage
3 = Shield No. 2: Bare copper wires (0.10 mm) 100% coverage
4 = Insulation: PE, Ø 1.15mm
5 = Conductor: Stranded bare copper wires 25 x 0.10mm (0.19mm²) 25x38AWG = 24 AWG

Technical Datas:
Conductor resistance:   < 90 ohm/km
Shielding resistance:   < 20 Ohm/km
Capacitance (at 800Hz): cond/cond: < 75 nF/km
  cond/shield: < 141 nF/km
Characteristic impedance: at 20 kHz: 145 Ohm
Test voltage: cond/cond: 500 veff
  cond/shield: 2000 veff
Operating voltage:   low voltage
Operating voltage: flexi-installed: -5° to +50° C
  fix-installed: -30° to +70° C


Ordering Information:

Order No. Type Diameter Colour Spool Size Weight/
Spool		  Shipping Unit
10301 GAC-2/1 PVC 3.3 mm gray 300m 6.20 kg 4x300m
10301-500 GAC-2/1 PVC 3.3 mm gray 500m 10.50 kg 1x500m
  .

Please inquire via contact and avoid entering all datas. You can also simply send us an email to info@gothamaudio.us
No minimum order!
Gotham Cables are available from our Swiss service lab soldered as per your desires.
Each cable is being made in our own service lab by our own staff at highest standards and to your specification.
Visit our soldering department here:  LINK
