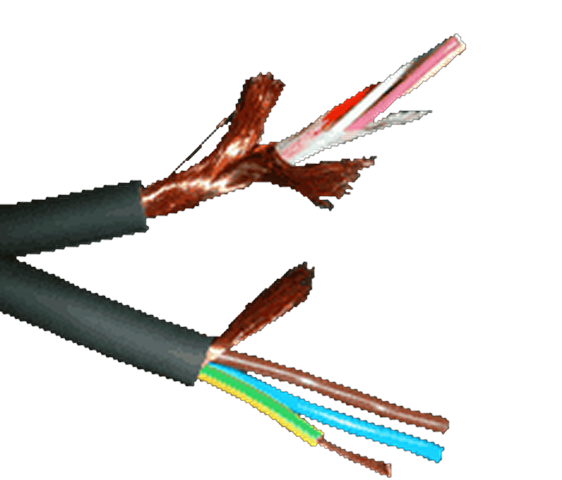

Hybrid Starquad GAC 4/1 Double Shielded & 3 x 0.75mm² (11510) Single Shielded Power 230V


Hybrid Audio/Power cable perfect to make interconnect leads for active loudspeaker systems/studio monitors.
We combine a double shielded starquad cableb similar to our 10921 with a shielded  power cable for 230VAC.
Our starquad construction will protect your genuine audio signal from possible RF-interferences transmitted from your mains power line.



Signal A: GAC 4/1mini  Signal side Staequad  10921 in PVC/PE

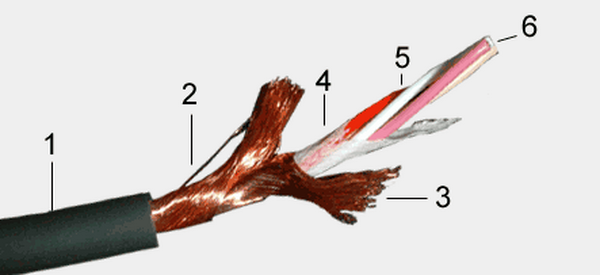

Construction: Star quad Audio Cable
1 = Jacket: PVC, Ø 6.5 mm, grey (dark)
2 = Shield No. 1: Bare copper wires (0.10mm) 100% coverage
3 = Shield No. 2: Bare copper wires (0.10mm) 100% coverage
4 = Viscose fiber coat: Counter wrapped to the quad conductors
5 = Insulation: PE, Ø 1.2 mm, white, red, pink and ivory quad twisted
6 = Conductor: Stranded bare copper wires 7 x 0.20mm (0.22mm²) 7x32 AWG=(16 AWG)


Technical Datas:
Conductor resistance:   < 85 ohm/km
Shielding resistance:   < 20 Ohm/km
Capacitance: cond/cond: < 55 nF/km
  cond/shield: <105 nF/km
Characteristic impedance: at 20 kHz: 80 ohm
Prüfspannung: cond/cond: 500 veff
  cond/shield: 2000 veff


Side B: 3 x 0.75mm² Single Shielded (11510) Power Cable

Application: Tree conductor signal line for high power.

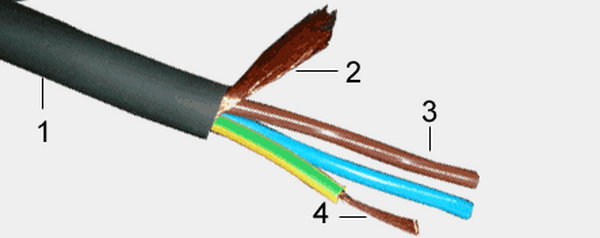

Construction:
1 = Jacket: PVC, Ø 6.5 mm, grey (dark)
2 = Shield: Bare copper wires (0.10mm), 100% coverage
3 = Insulation: PVC, Ø 3.00mm high voltage tested
4 = Conductor: Stranded bare copper wires 24 x 0.20mm (0.75mm²)

Technical Datas:
Conductor resistance:   < 30 ohm/km
Shielding resistance:   < 30 ohm/km
Test voltage: cond/cond: 500 veff
  cond/shield: 2000 veff
Maximum Watts load: @ current 4.00 Ampere/Line < 500 Watt

Ordering Information:

Order No.
Type
Diameter
Colour
Spool Size
Weight/
Spool
Shipping
Unit
11510 Hybrid Cable 6.5 x 13.4 mm gray 100m 13.30 kg 2x100m




.

Please inquire via contact and avoid entering all datas. You can also simply send us an email to info@gothamaudio.us
No minimum order!

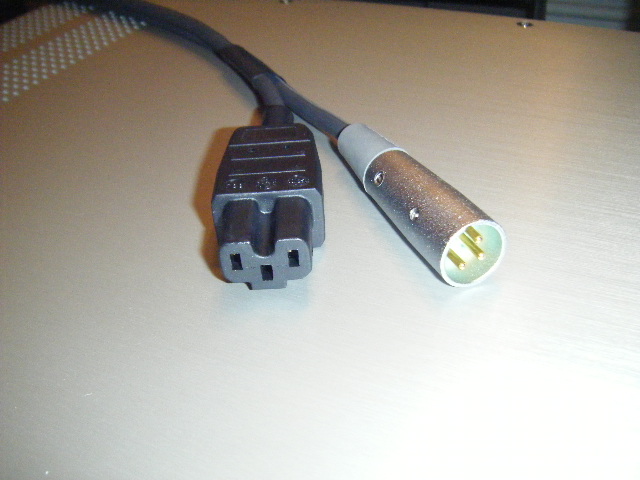

Gotham Cables are available from our Swiss service lab soldered as per your desires.
Each cable is being made in our own service lab by our own staff at highest standards and to your specification.
Visit our soldering department here:  LINK




Starquad wiring instruction:
In order to benefit from the Starquad concept you need to wire the 4 conductors for you balanced audio cable as follows: (See wiring diagram below)
Bundle each opposite (Star) conductor together, we made colour code easy to identify the opposite conductor. (red/pink and white/ivory each belong together.)
Pin2= red&pink (Signal+),  Pin3= white&ivory (Signal -). Pin1= shield 1&2 =Ground
Put each a few strands of each layer of the shields together to ground Pin 1 should you not have space for all shielding strands.
Cut away any spare strands from the shields and secure that no loose strands are hanging around. Use a shrinking tube to avoid short circuits.
We do not recommend putting any ground to the body shell on either side of your XLR line. The connector shell will get to ground once plugged into a receptacle.
RCA/Phono/Jack unbalanced wiring:
Many clients use our 4 conductor cable also for unbalanced interconnects. In this case we recommend to only use 2 conductor (red&pink) for your signal and put all other wires or parts thereof to ground with the shields. This will increase your noise protection! However for unbalanced application we do have our perfect unbalanced wires 1001x, and 1000x.
Stereo & 2 Channels application:
We actually do not support the idea to use a Starquad cable for stereo wiring, however it will be done and can be made with acceptable compromise regarding crosstalk and similar. If you use the cable as stereo line, use red/white for channel 1 and pink/ivory for channel 2. And again, all the shields to ground but not to the body shell of your connector.
Check our perfect stereo cables 12001/13001 or our conductor shielded Starquad 11301 for real quality stereo wiring!
